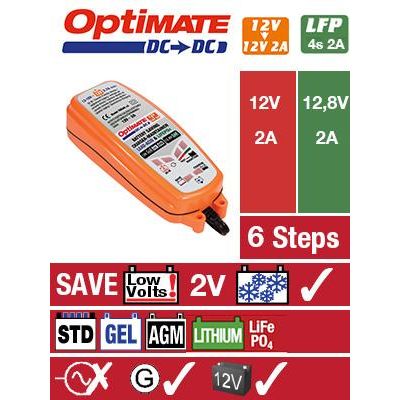

OptiMate DC-DC – the Unique battery to battery charger! OptiMate DC-DC draws power from one 12V battery to charge another – No AC power required!

OptiMate DC-DC brings you the advanced OptiMate features to places where there is no access to an AC Mains Power supply. Recover, charge and maintain your battery using a larger source battery (ideally 1.5x capacity) without fear of discharging the source thanks to OptiMate’s Source Battery Protection.

BMS re-activates battery from sleep or deep discharge protection mode.

OptiMate DC-DC automatically adapts to the connected battery type – Guarantees healthy lithium or lead-acid batteries!

FEATURES

• For all 12V starter battery types including lead-acid (Pb) > STD (with filler caps), AGM & GEL (sealed VRLA) and Li-Ion made with LiFePO4 / LFP technology
• Safe to leave connected. Full electronic protection
• Maintains battery at full charge for good health
• Low voltage recovery from as low as 2V
• Tests battery state of health
• Protects source battery from total discharge
• Energy saving technology
– Stand-by power less than 0.5W
– Efficient 24-7 battery maintenance
• IP54 weatherproof. Rated for use down to -40°c

SPECIFICATION

IDEAL FOR: STD, AGM & GEL 12V batteries from 6Ah and LiFePO4 (LFP) 12.8V/13.2V batteries from 2Ah
CHARGING AMPS: 2A (constant Current)
CHARGING VOLTS: nominal: 12V & 12.8V range: 2V – 14.4V
OPERATION: Fully automatic
STEPS: 6
– Low volt start – BMS reset
– Pulse save
– Controlled charge
– Optimize
– Test after charge
– Maintain 24-7
FEATURES: Charge your 12V lead-acid or 1.28V/13.2V LFP-lithium battery from another 12V battery! No AC power required. Ideal for both lead-acid and LFP (LiFePO4) batteries
USE: Indoor / outdoor (lowest temperature: -40°F / -40°C)
INPUT: 12-16 V, 2.7A max. With source battery protection > low battery warning light and automatic shut-down
STYLE: Weatherproof case with wall mounts, 180cm charge lead ending in SAE connector
SAVE: Low volt start of 2V
SAFE: No risk of overcharging. Totally safe for vehicle electronics. Sparks suppressed. Safe for long-term battery maintenance. Automatic shut-down if short-circuited or battery disconnected.
INCLUDED: Fused battery clip set, standard battery clip set & weatherproof battery lead
WARRANTY: 3-year limited replacement warranty.
Manufacturer Part Number: TM500

HOW IT WORKS

1 – Attach the fused clip set to the short input cable (side marked 12 – 16V) and then connect the OptiMate DC-DC to a charged source battery. The OptiMate DC-DC’s SAVE and CHARGE LEDs will blink together for 1 minute, indicating it is ready to charge a battery.

2 – Within 1 minute* connect the output charge lead to the battery requiring charge, using the standard clip set or connect directly to the battery that may have the weatherproof battery lead already pre-wired. Charging proceeds when the SAVE or CHARGE LED turn full on.
*After 1 minute the OptiMate DC-DC turns off if not connected to the battery that needs charging. To re-start, disconnect from the source battery and then once again reconnect.

3 – Wait until the green TEST LED blinks. Charging has been completed! Leave the charger connected for 24/7 long term maintenance.
